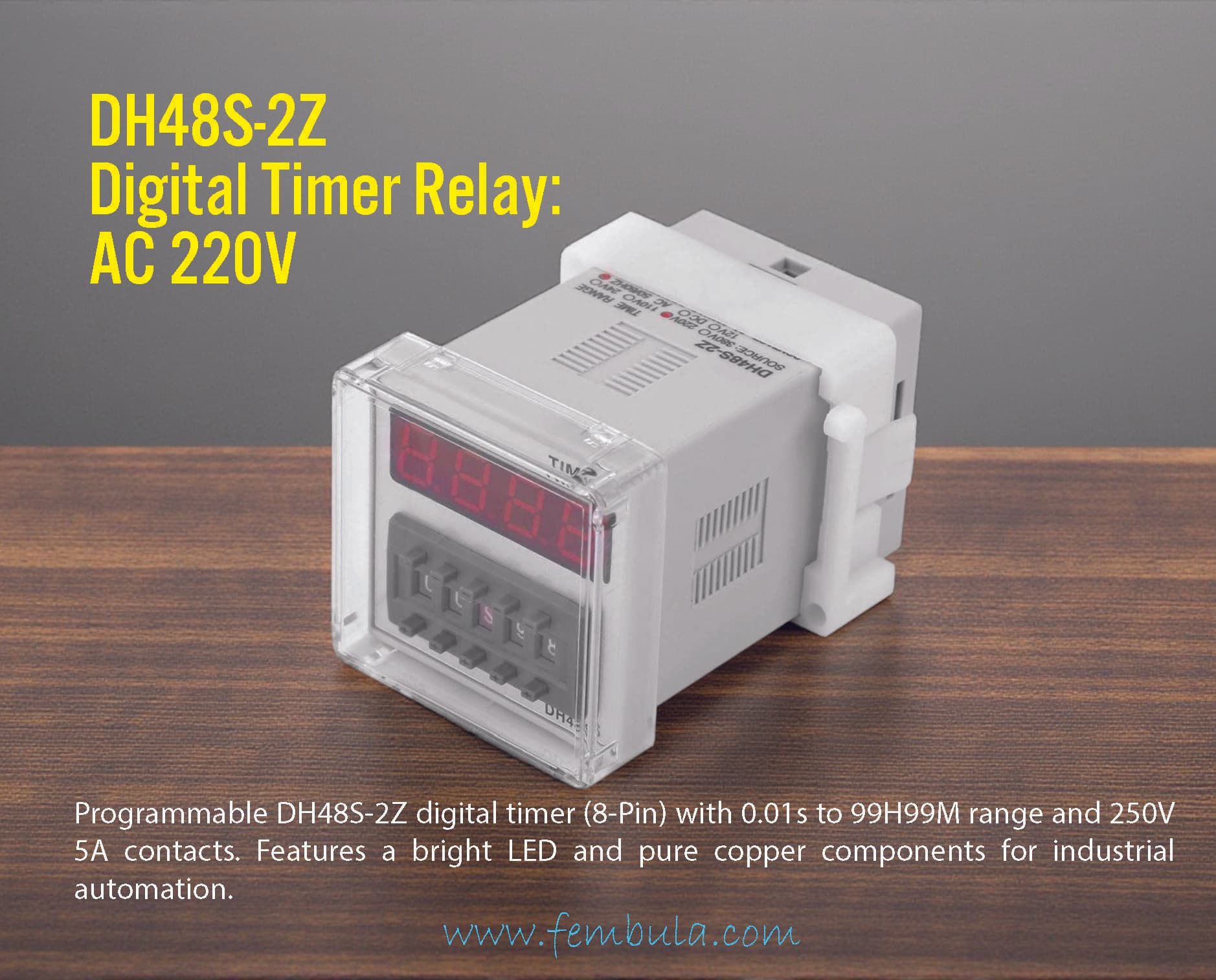

Name: DH48S-2Z Digital Time Delay Relay | AC 220V | 0.01s - 99H99M | 8-Pin
Availability: OutOfStock

Key Highlights

Digital Programmability: Offers a wide timing range from 0.01 seconds up to 99 hours 99 minutes (0.01S-99H99M).
High Visibility Display: Equipped with a high brightness, high clear LED digital tube display for clear viewing in any light condition.
Reliable Components: Both the relay and transformer utilize pure copper wire material.
Stable Operation: Features pins with good contact performance to ensure stable working.

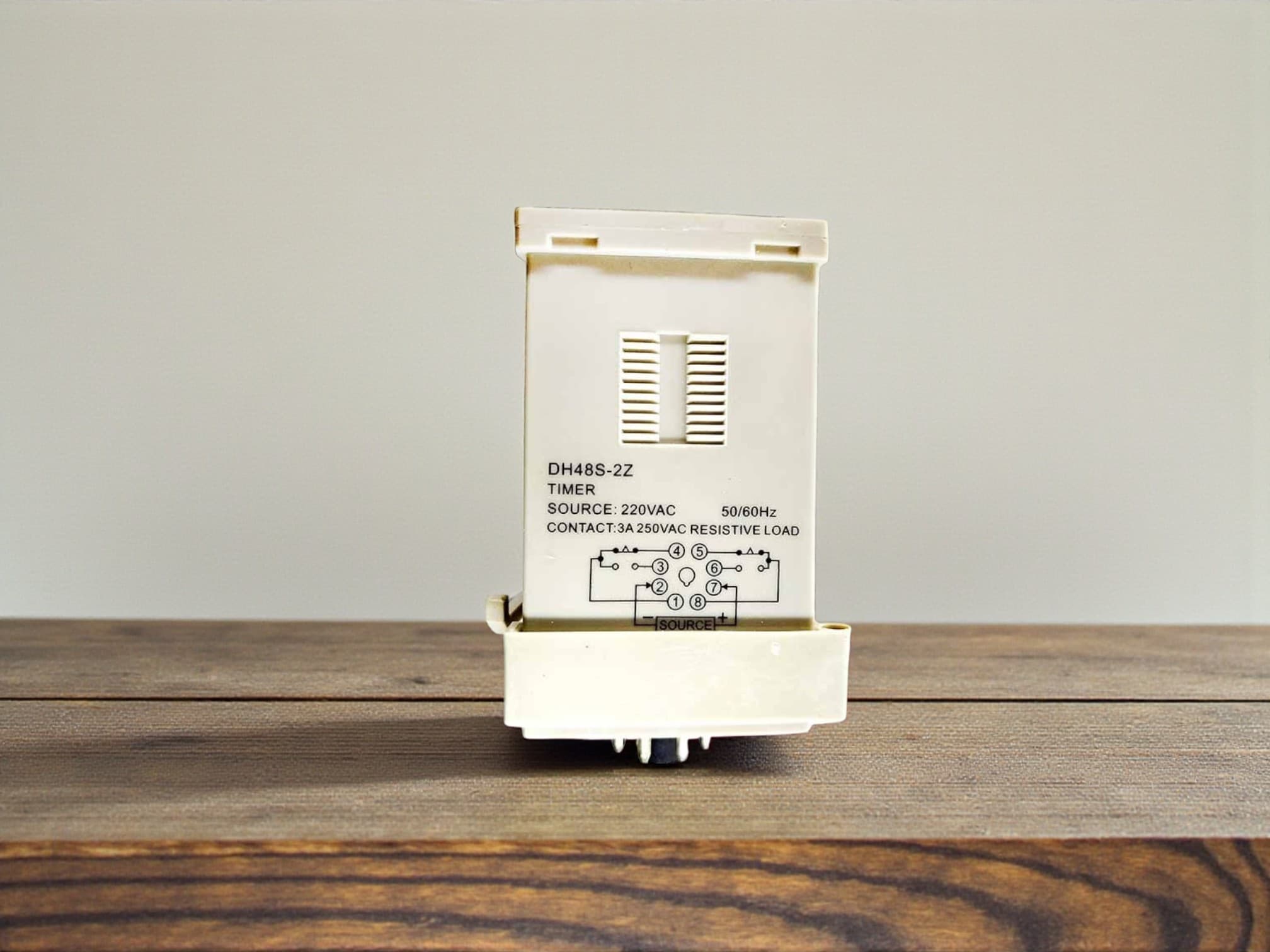

Control Output: The DH48S-2Z model typically provides DPDT (Double Pole Double Throw) contact capacity (2 NO, 2 NC).
Contact Rating: Contact capacity is rated at AC 250V 5A.
User-Friendly: The elastic, wide-spacing adjust button is designed for quick adjustment and easy operation.
Primary Application: Used widely for timing delay control in industrial automation and mechanical equipment.

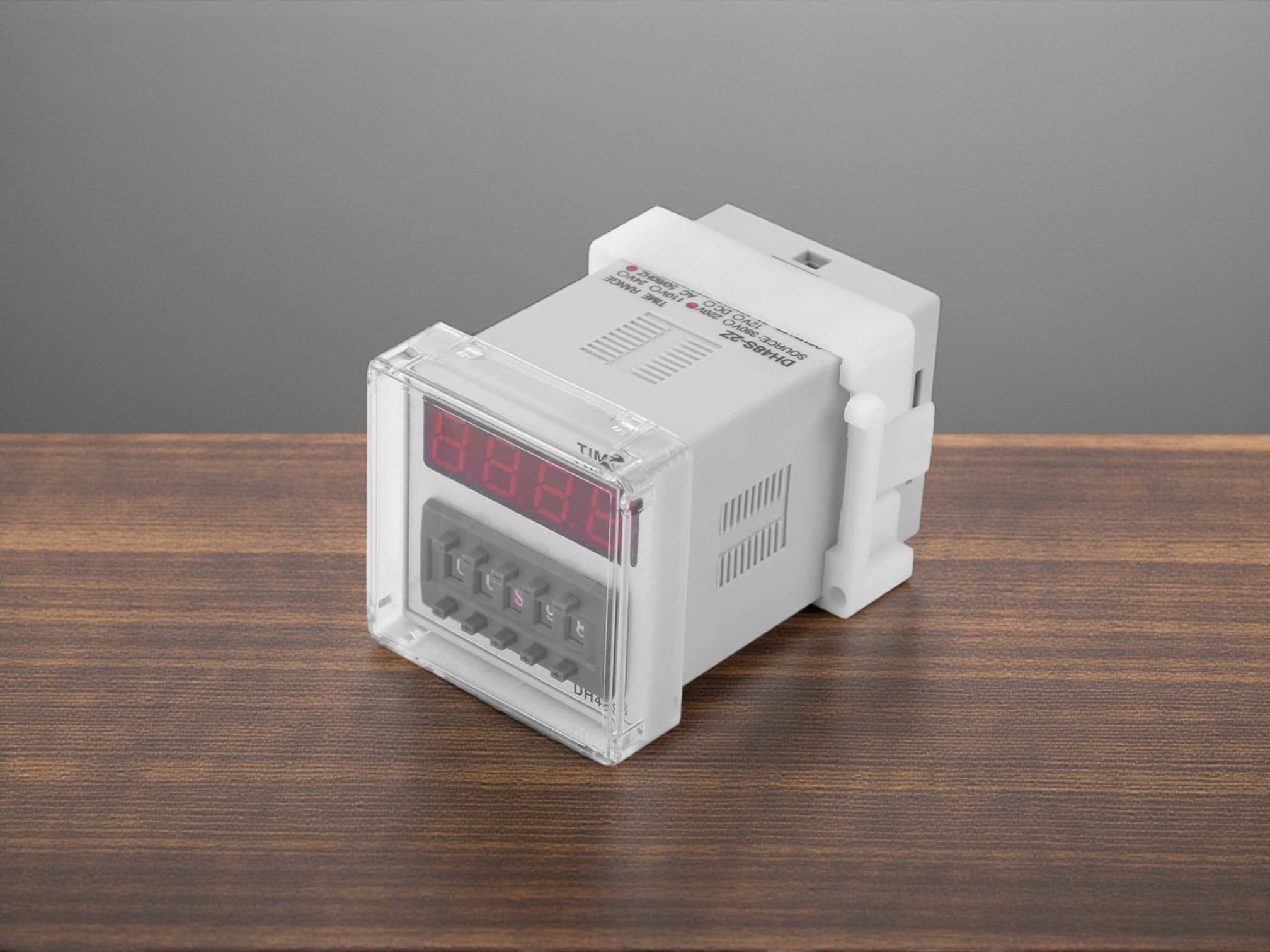

The DH48S-2Z Digital Time Relay is a precision timing device widely used for timing delay control in industrial automation systems and mechanical equipment. This 8-pin relay operates on AC 220V at a frequency of 50/60Hz and is designed for an ON-delay operating pattern. The device offers a wide and flexible time range, adjustable from 0.01 seconds up to 99 hours and 99 minutes (0.01S-99H99M).

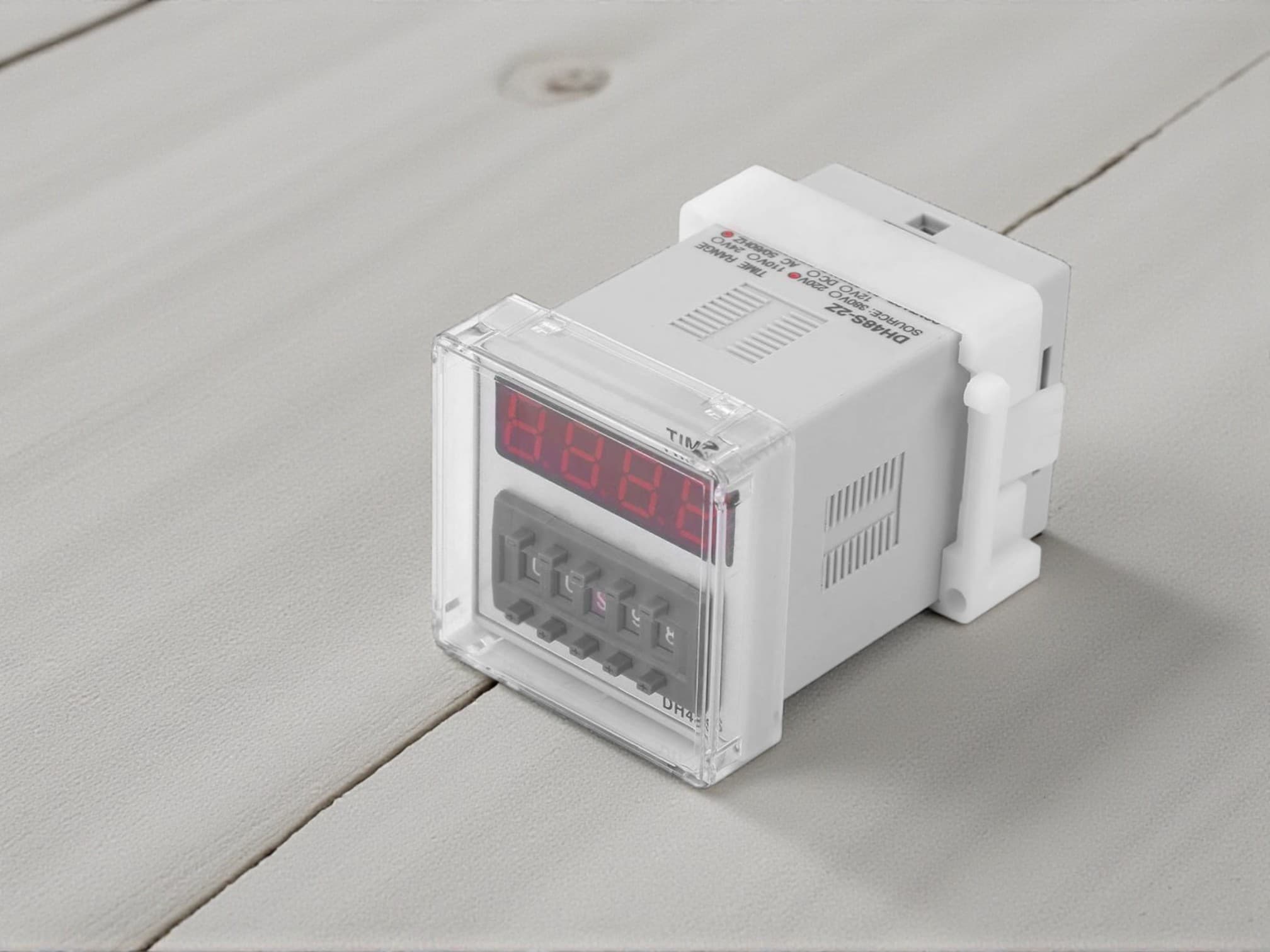

It features a high brightness, high clear LED digital tube display that ensures visibility both day and night. The internal components, including the relay and transformer, are adopted of pure copper wire material, and the pin has good contact performance to ensure stable working.

Attributes (Product Attributes)

Product Name: Digital Time Relay
Type/Model: DH48S-2Z
Rated Voltage: AC 220V
Frequency: 50/60Hz
Contact Rating: AC 250V 5A
Time Range: 0.01S-99H99M
Display: LED digital tube display
Coil/Relay Material: Pure Copper Wire

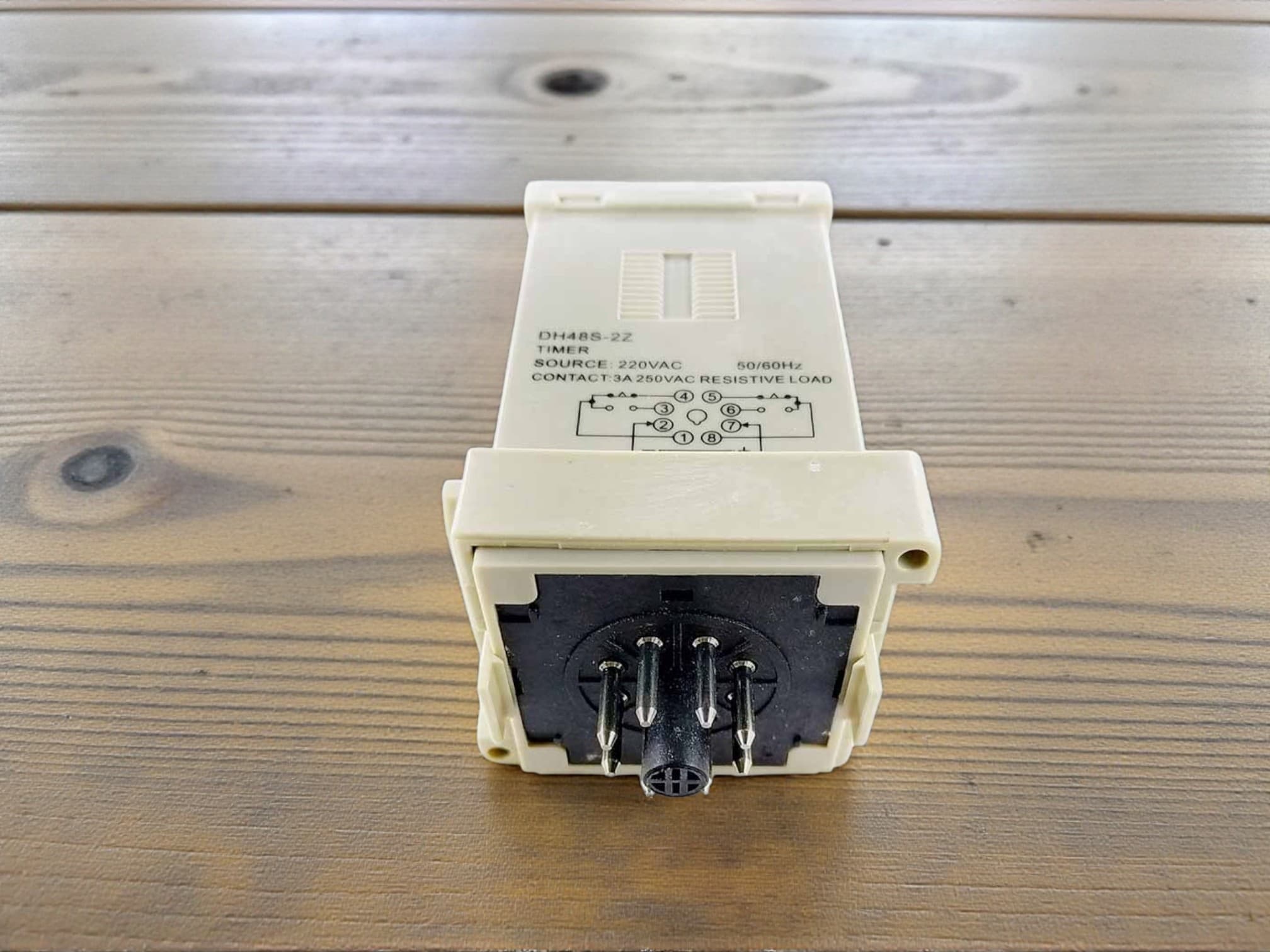

Termination: 8 Pins
Matching Socket (Typical): PF083A, PF083A-E
Mounting (Typical): Panel or DIN rail
