DH48S-S Digital Timer Delay Relay | AC 220V | Repeat Circular Delay | 0.1s–990h
2979
2999
20৳ OFF
Inclusive of all taxes
Flash sell
Valid till January 27, 2027 12:00 PM
Key Highlights
Specialized Operation: Features Repeat Circular Delay operating pattern, with circular working times selectable from 1 to 15 cycles.
Wide Timing Range: Offers an extensive timing range from 0.1 seconds to 990 hours (0.1s–990h).
Flexible Operating Power: Compatible with various AC and DC voltages, including AC 220V.
Strong Contact Capacity: Contact capacity rated at AC 220V 5A and DC 30V 5A (Resistance Load).
High Reliability: Has a low repeat error of 1%.
Contact Form: Utilizes a combined contact form of SPDT(1C) SPDT(2C).

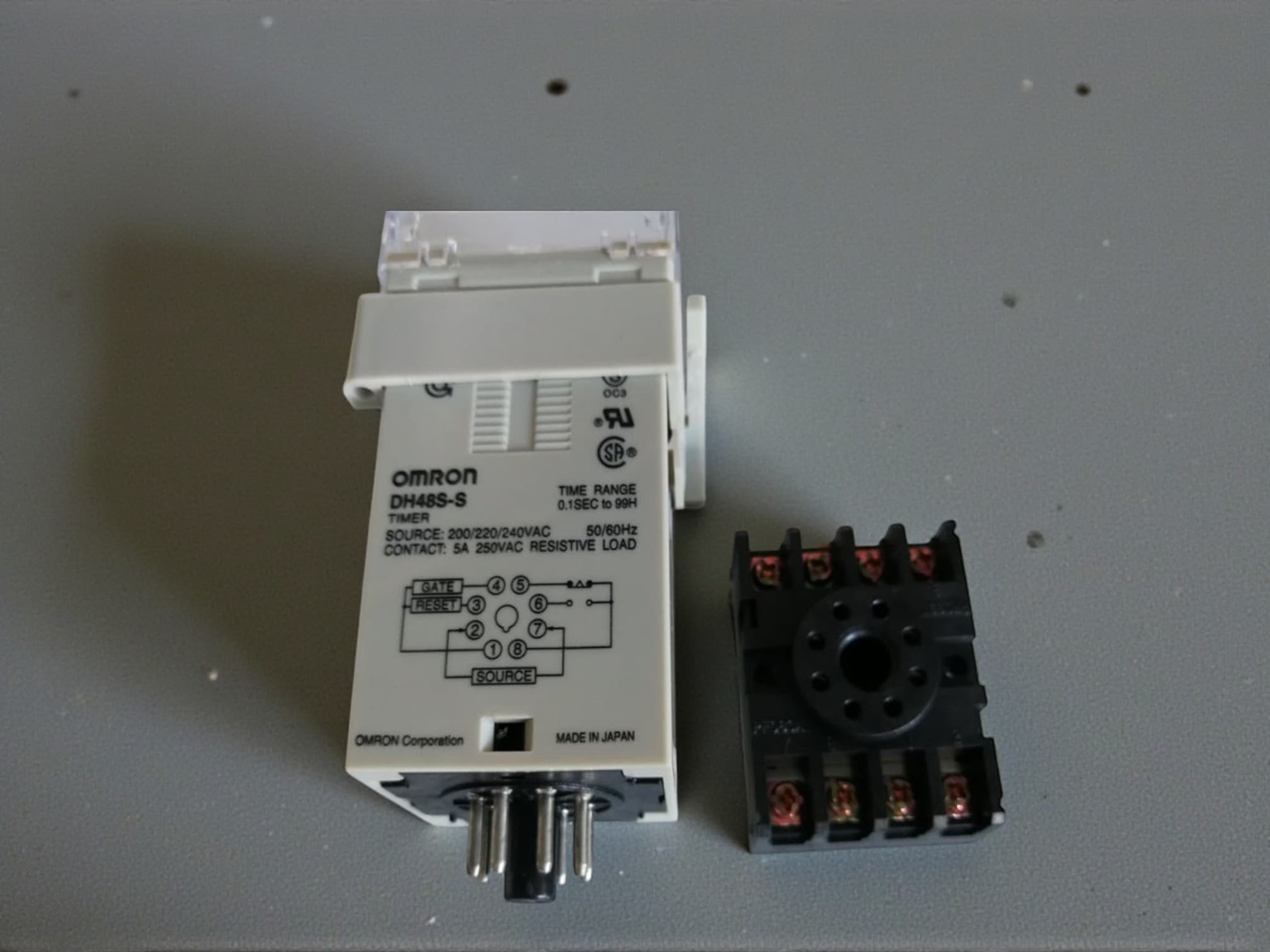

Mounting: Designed for standard Panel Mount installation.
Compact Size: Outline dimensions are 48 x 48 x 105mm.
99 items in stock • Order now for fast delivery!

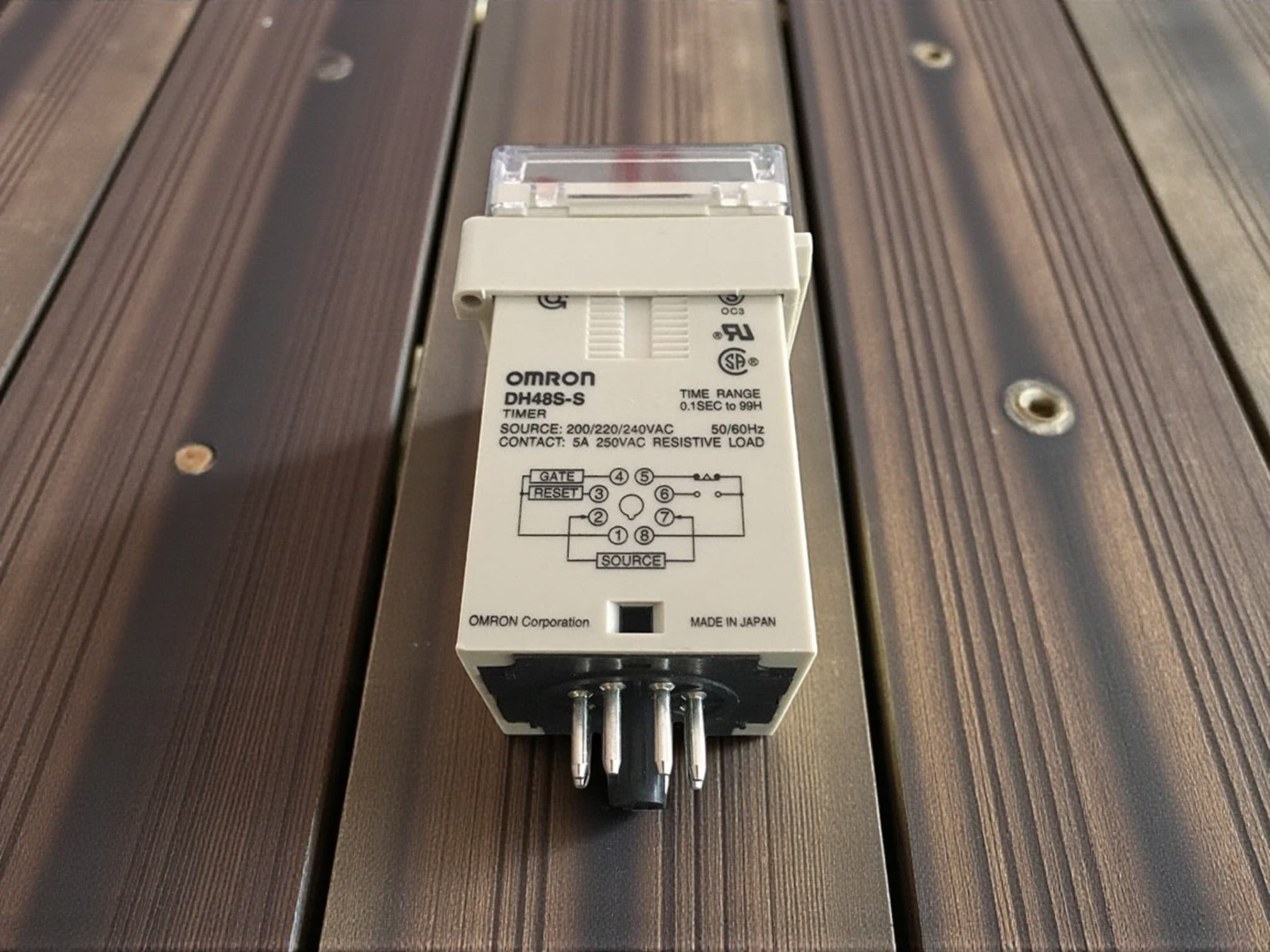

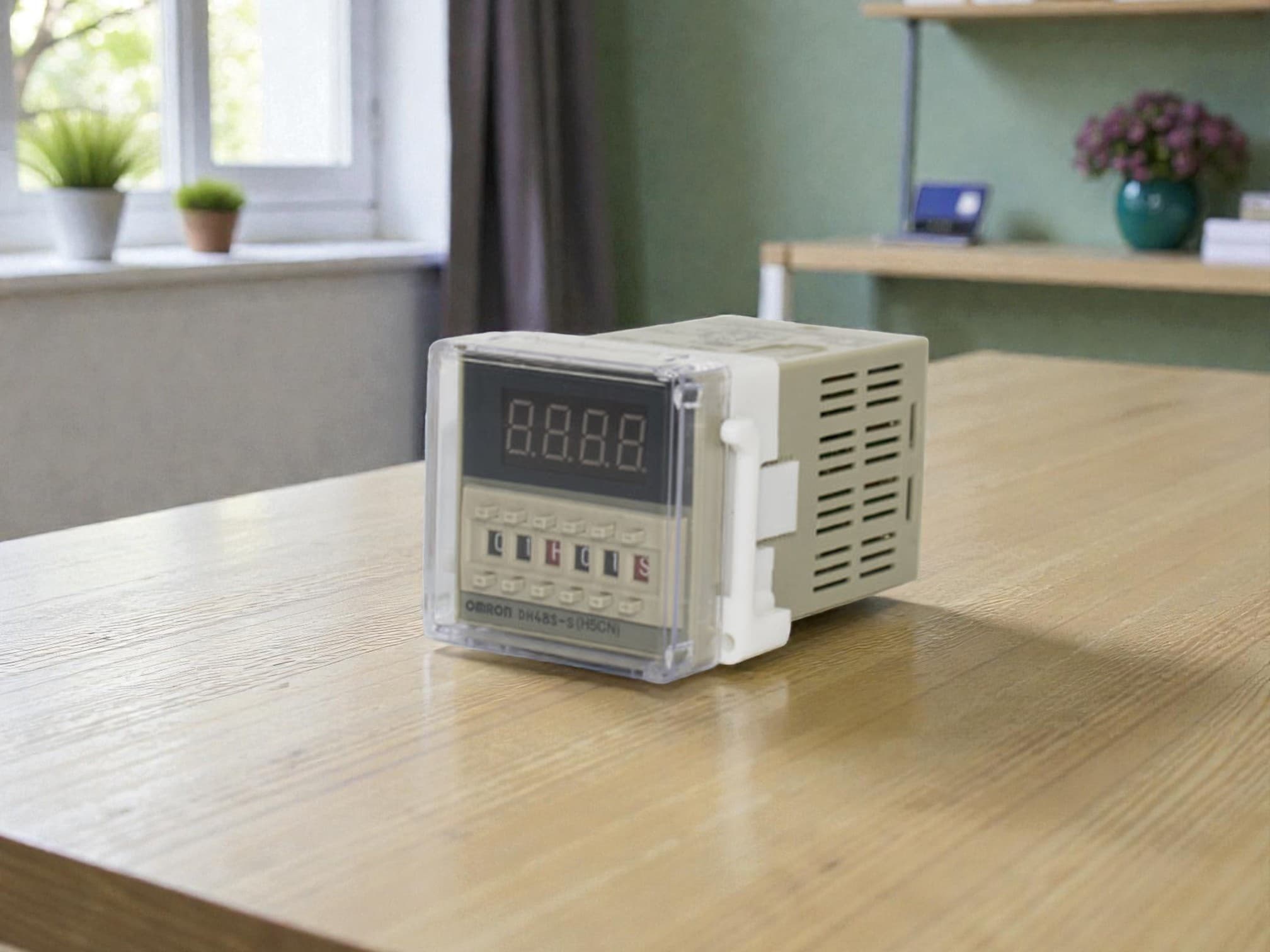

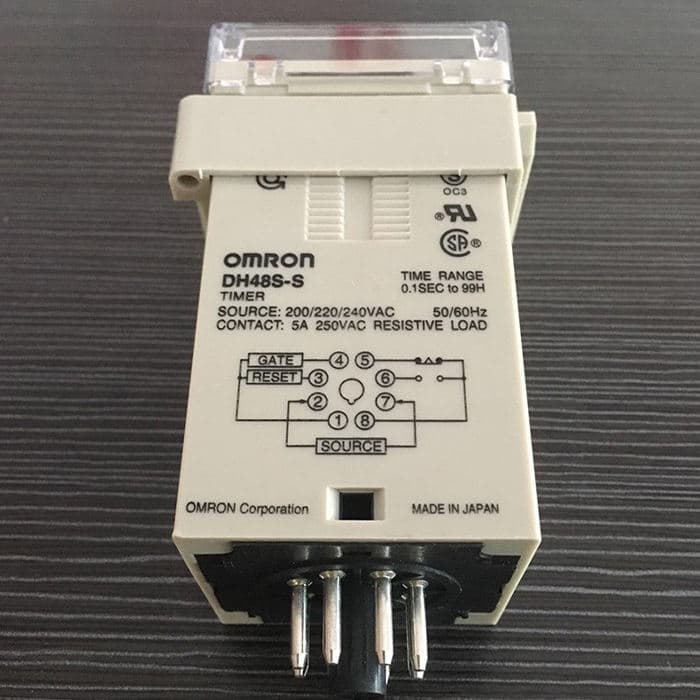

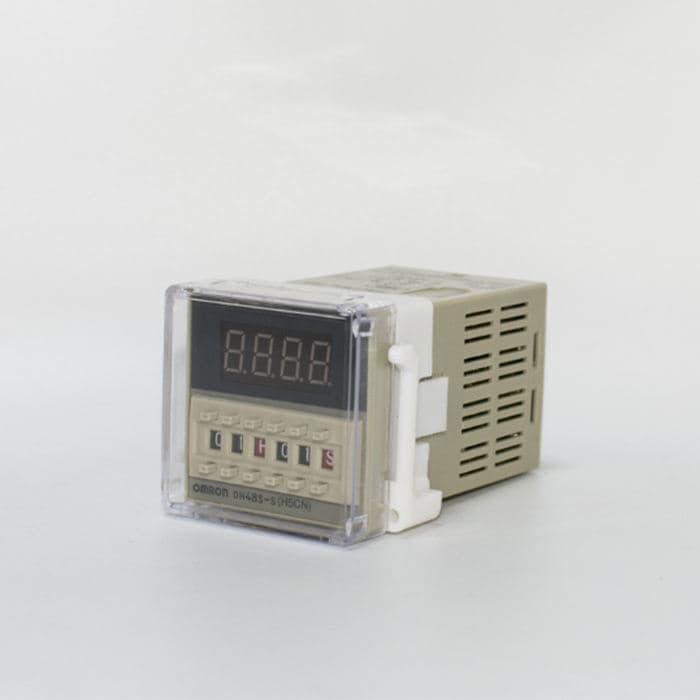

The DH48S-S Digital Time Relay is a high-precision industrial timer with a flexible operating pattern, specializing in Repeat Circular Delay. Unlike the standard ON-delay types, the DH48S-S allows for setting circular working times (cycles) which can be chosen from 1 to 15, making it highly versatile for cycling automation. It features a vast timing range from 0.1 seconds up to 990 hours (0.1s–990h).
It operates on multiple voltages, including AC 220V at 50Hz, with a robust contact capacity of AC 220V 5A and DC 30V 5A (Resistance Load). The unit is designed for Panel Mount installation and is available with a highly reliable SPDT (1C) plus SPDT (2C) contact form.
Attributes (Product Attributes)
- Model: DH48S-S
- Operating Power (Coil Voltage): AC 110V, 220V, 380V, 50HZ; DC 12V, 24V
- Operating Pattern: Repeat Circular delay
- Circular Working Times: Choose from 1 to 15
- Timing Range: 0.1s–990h
- Contact Form: SPDT(1C) SPDT(2C)
- Contact Capacity (Resistance Load): AC 220V 5A, DC 30V 5A
- Repeat Error: $\le 1\%$
- Mounting Type: Panel Mount
- Outline Size: 48 x 48 x 105mm
